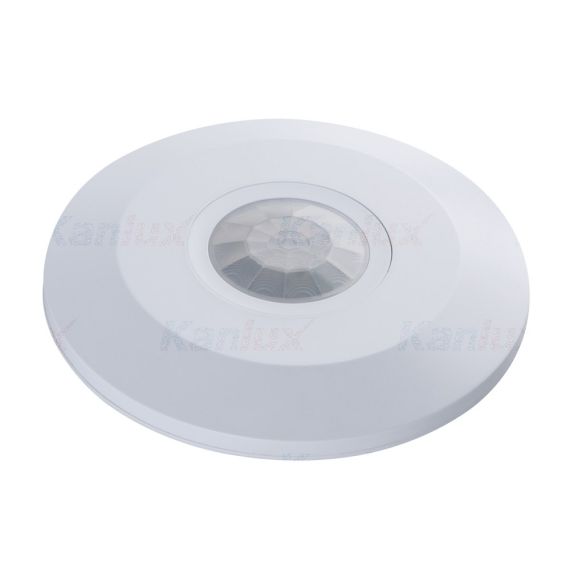

PIR motion sensor ZONA FLAT-W Kanlux
Kanlux ZONA FLAT is the motion sensor with a maximum motion detection range of 8m. On the other hand, its maximum horizontal operating angle is 360 degrees. With the ZONE sensor it is possible to adjust the lighting time from 10sec to 15min and also set the external lighting level in the environment in which the device will work.

Basic information
- EAN13: 5905339234520
- Vendor code: 23452
- Color : white
- Material : plastic material
- Place of use : inside

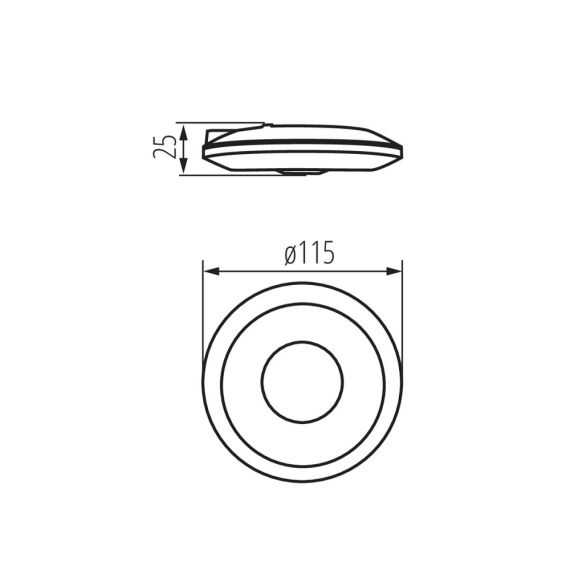

Weight and dimensions
- Height [mm]: 25
- Diameter [mm] : 115
- Weight : 110g
Technical data
- Rated voltage [V]: 220-240 AC
- Nominal frequency [Hz] : 50/60
- Color : white
- Maximum power [VA] : 2000
- IP degree 20
- Mounting location : ceiling mounting
- Degree of protection against electric shock : II
- Can be mounted on normally flammable surfaces : yes
- Sensor range [m] : max 8
- Sensor range [°] : H 360 / V120
- Minimum run time [s] : 10
- Maximum running time [min] : 15
- Sensor operating time [second-minute] : 10-15
- Sensor type : PIR
- Setting the brightness with which the sensor detects motion [lx] : 3-2000
- Micro-interval between contacts of the relay: yes
- Operating temperature [°C] : 5 25
- Type of connection : terminal block
- Sections of cables used [mm] : 0,75 1,5
