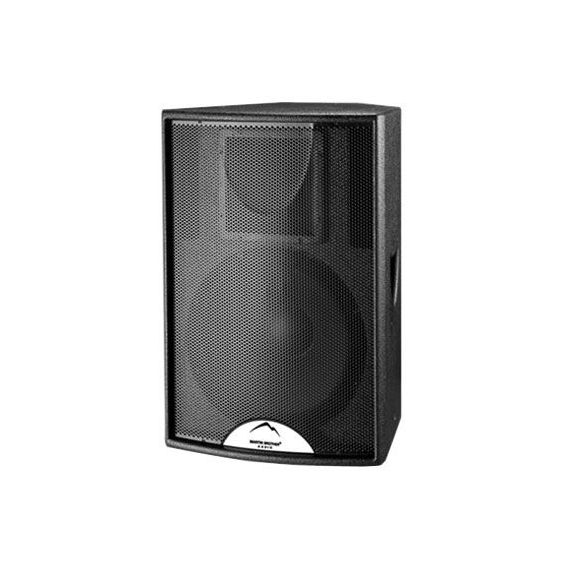

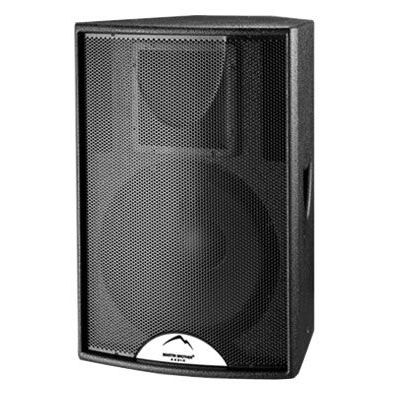

Martin Brother - Blackline F15 400W
F15
The F15 model, despite being an extremely compact two-way loudspeaker, guarantees an extraordinarily powerful and dynamic sound over the entire frequency range. The powerful 380mm driver with 76mm bass voice coil is combined with a 35mm compression driver mounted on an 80 x 50 HF steerable horn. The F15 loudspeaker, equipped with a multi-angle cabinet, can be used in vertical or horizontal position. For tripod mounting, the base of the unit has a tripod mount. To position the horn for horizontal use, it is necessary to remove the grille, unscrew the horn and rotate it 90 degrees. The F15 model can be used optionally in combination with the M3 controller.
- FREQUENCY RESPONSE (5) 55Hz-18kHz ± 3dB -10dB @ 45Hz
- DRIVERS 15” (380mm)/3” (75mm) voice coil, neodymium magnet LF driver 1.4” (35mm) exit HF compression driver
- RATED POWER (2) 400W AES, 1600W peak
- RECOMMENDED AMPLIFIER MA3.0
- SENSITIVITY (6) 100dB
- MAXIMUM SPL (9) 126dB continuous, 132dB peak
- NOMINAL IMPEDANCE 8 ohms
- DISPERSION (-6dB) 80˚ horizontal, 50˚ vertical
- CROSSOVER 1.4 kHz passive
- ENCLOSURE 68 litre, multi-laminate birch ply
- FINISH Textured black paint
- PROTECTIVE GRILLE Black perforated steel
- CONNECTORS 2 x Neutrik NL4
- PIN CONNECTIONS FR+,- : 1+,1- , Link thro’: 2+,2-
- FITTINGS 12 x M8 threaded inserts
- 2 x pocket handles
- DIMENSIONS (W) 471mm x (H) 690mm x (D) 443mm
- WEIGHT 30.5 kg
