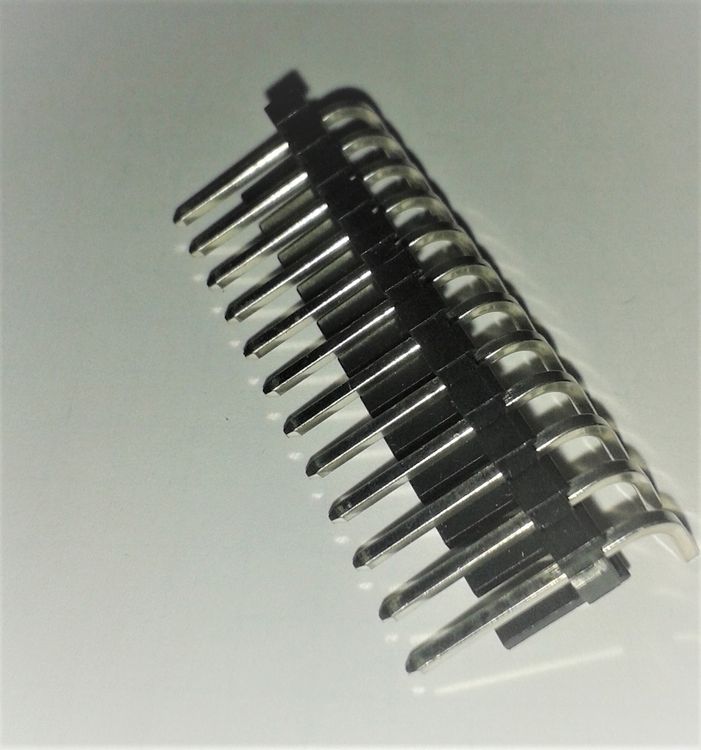

12-pole Molex connector - 10-piece package
NOS100765
Molex connector 12 poles - pack of 10 pieces
Brand: MOLEX
P / N: 0026481124
- Agency Certification: CSA LR19980 / UL E29179
- General Product Family PCB Headers
- Series 41682
- Application Power, Wire-to-Board
- Application Tooling Part Link 011201230
- Product Name KK®
- Physical
- Breakaway Yes
- Circuits (Loaded) 12
- Circuits (maximum) 12
- Color - Resin Black
- Durability (mating cycles max) 25
- Flammability 94V-0
- Glow-Wire Compliant No
- Lock to Mating Part None
- Material - Metal Brass
- Material - Plating Mating Tin
- Material - Resin Polyester
- Number of Rows 1
- Orientation Right Angle
- PC Tail Length 5.26mm (.207")
- PCB Locator No
- PCB Retention None
- PCB Thickness - Recommended 1.60mm (.063")
- Packaging Type Bag
- Pitch - Mating Interface 3.96mm (.156")
- Pitch - Termination Interface 3.96mm (.156")
- Polarized to Mating Part Yes
- Polarized to PCB Yes
- Shrouded Partial Stackable No
- Temperature Range - Operating 0°C to +75°C
- Termination Interface: Style Through Hole
- Electrical Current - Maximum per Contact 7A Voltage - Maximum 250V
- Solder Process Data Lead-free Process Capability Wave Capable (TH only)
- Material Info Old Part Number A-41682-A12A102
