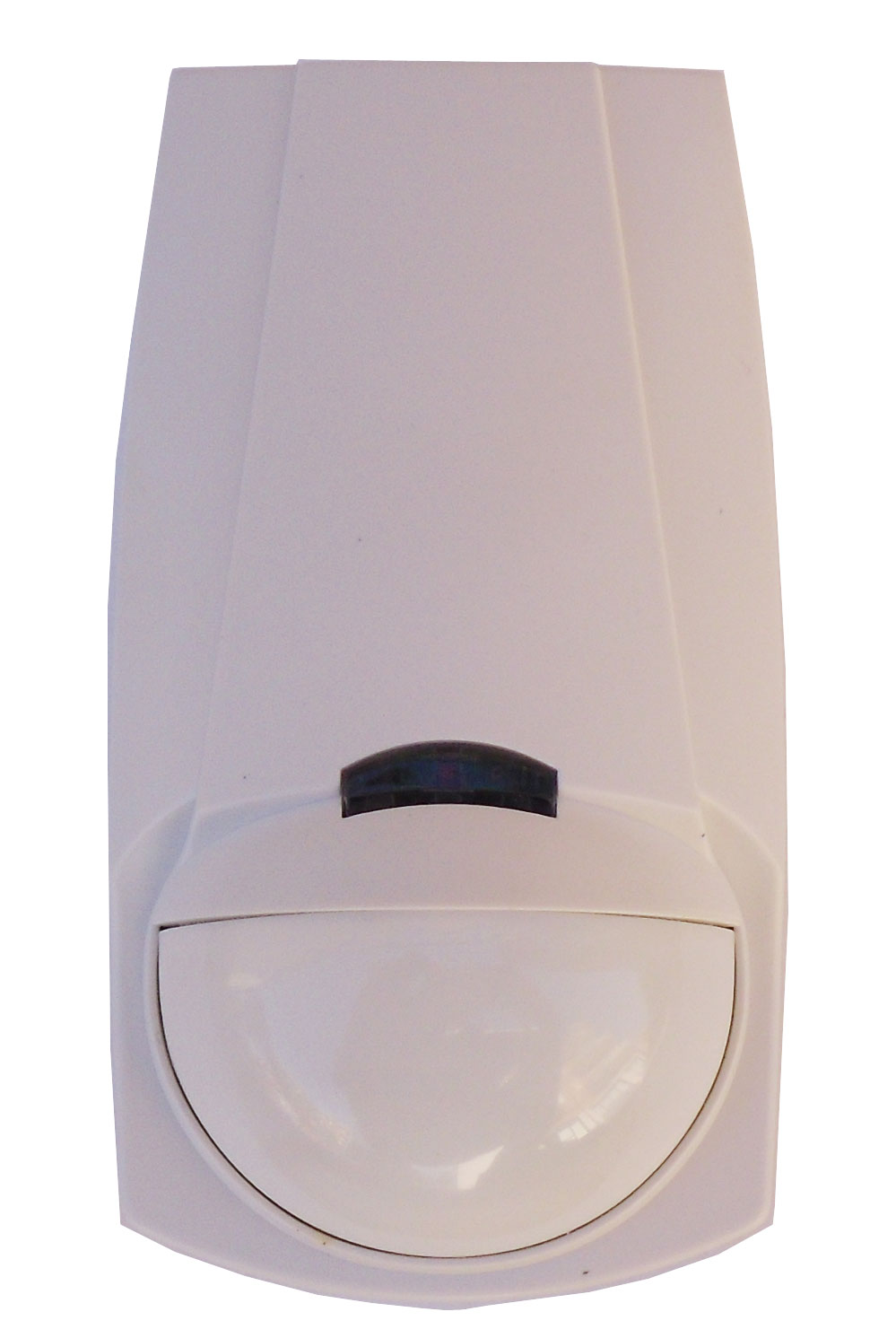

Dual technology sensor with PET immunity
Dual detector Digital PIR Technology and microwave sensor PET IMMUNE 25Kg .
Function AND / OR, sensitivity adjustment of the PIR and the microwave sensor make the sensor usable in all conditions.
This wire detector monitors the environmental conditions by analyzing the complete spectrum of speed frequencies; of motion, focusing on intruders and eliminating environmental factors that could cause false alarms.
Spectrum analysis is implemented in the detector's VLSI electronics to guarantee reliable and trouble-free detection.
the sensor uses two technologies simultaneously activating the relay; alarm occurs only when both sensors simultaneously detect a movement.
Pir sensor complete with joint with sensitivity; automatic as a function of temperature changes, anti-opening protection tamper, relay outputs; solid state NC 80mA, 60Vdc max.
Conforms to 1 & deg; CEI79-2 standard level
- Pyroelectric sensor with four elements and microwave sensor, high immunity RF 30Vm
- Rated supply voltage from 9 to 16 Vdc + 5% maximum absorption 12mA.
- Three warning lights Alarm
- Pir
- Microwave
Compatible with all anti-theft systems with wires
Dimensions: 118x62x40mm
Joint included
