DIN rail power supply unit 12V 1.25A 15W
F1465
DIN rail power supply unit 12V 1.25A 15W
suitable for DIN mounting, TH 35/7.5 or TH 35/15
- The 12V power supply is suitable as a doorbell transformer for the operation of surveillance and access systems, door openers, intercoms, doorbells, etc.

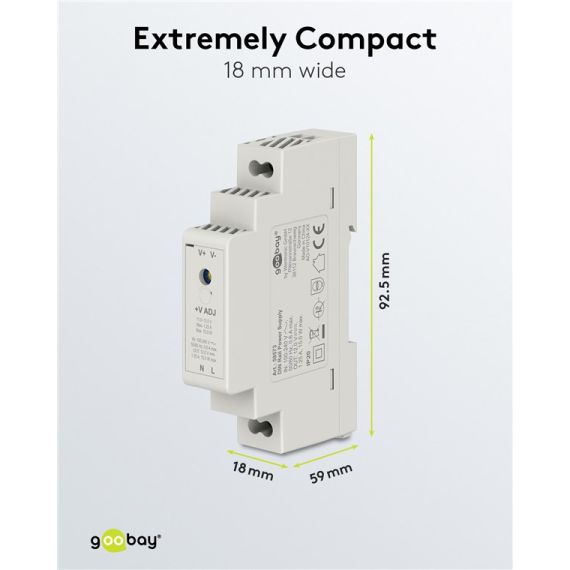

- With a width of 18 mm, it is particularly compact and can be quickly and easily mounted on a hat rail, e.g., in an electrical cabinet, by means of a snap-on system.
- Highly reliable and stable 12 V LED transformer with an input voltage range of 100-240 V (AC) at 50/60 Hz
- The rectifier has a variable DC output voltage of 11-13 V, high efficiency and low no-load power.
- Particularly safe due to overvoltage, overload and short circuit protection, IP20 rating and safe electronic isolation according to protection class II.
- The 230 V to 12 V transformer with passive convection cooling is connected via touch-protected screw terminals.
- The LED indicator on the DIN rail transformer (DR-15-12) lights up continuously during operation.
- Brand: Goobay
- EAN code: 4040849595738
- Supplier code: 59573
Specifications.
- Average efficiency in active mode
- minimum load 0
- Number of LEDs 1
- Max power 15 W
- Dimming not dimmable
- Power consumption in no-load condition 0.2 W
Connections
- Input Screw terminal x in
- Output Screw terminal
- Output, max. amperage 1.25 A
- Output, voltage 12 V (DC)
- Number of inputs 2
- Number of outputs 2 pieces
- Input, voltage range 100 - 240 (AC) V
- Output, voltage range 11-13 V ADJ V
- Output, voltage 12.0 V (DC)
- Output, max. amperage 1.3 A
- Input current 0.6 A
General characteristics
- protection class IP20
- class of appliance II
- color white
- WEEE, CE markings
- Overload protection, short circuit protection
- Environmental temperature range: -10 °C +40 °C
Brand
Goobay
Supplier code
59573
EAN
4040849595738
