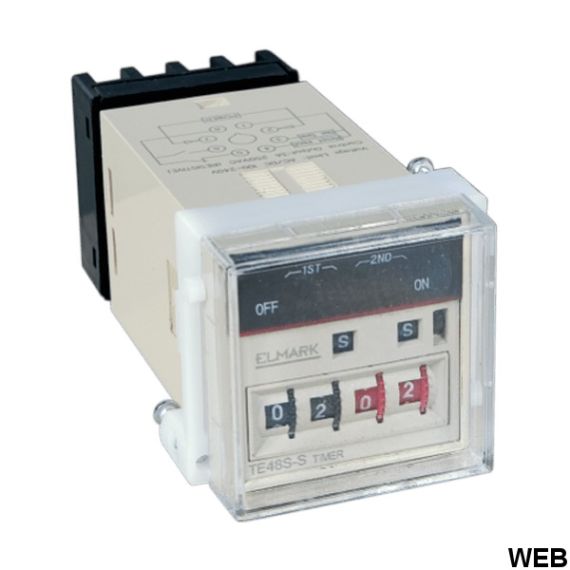

Timer 3A 1s-99min 48S-S Elmark
EL2307
Timer 3A 1s-99min 48S-S Elmark
Features
- Active load: 3A
- Defense setting: 1 sec. - 99 min.
- Overall size (mm ): L: 95 / W: 48 / H: 58
- Brand: ELMARK
- EAN code: 3800131118936
- Vendor code: 50105
Technical characteristics
- Power supply voltage: 230V ; 50Hz
- Acceptable variation of the input voltage: 85 -110% U
- Option for selecting the working range: 1 to 99 seconds / 1 minute to 99 minutes
- Error :± 0.05 s
- Minimum duration of the input impulse: 20ms
- Consumption: 5VA
- Resistance to electrical wear: 107 cycles
- Resistance to mechanical wear: 105 cycles
- Operating temperature: -10 - + 55 °
- Temperature storage: up to 70 °
- Humidity: 45 - 85% RH
- Switching capacity at load: 3A
- Weight: 300g
Montage
- On the front panel of the card
Brand
Elmark
Current
3A
Defense setting field
1s-99min
Nominal tension
230V
Packaging
Integral cardboard packaging
Typology
Timer
EAN
3800131118936
