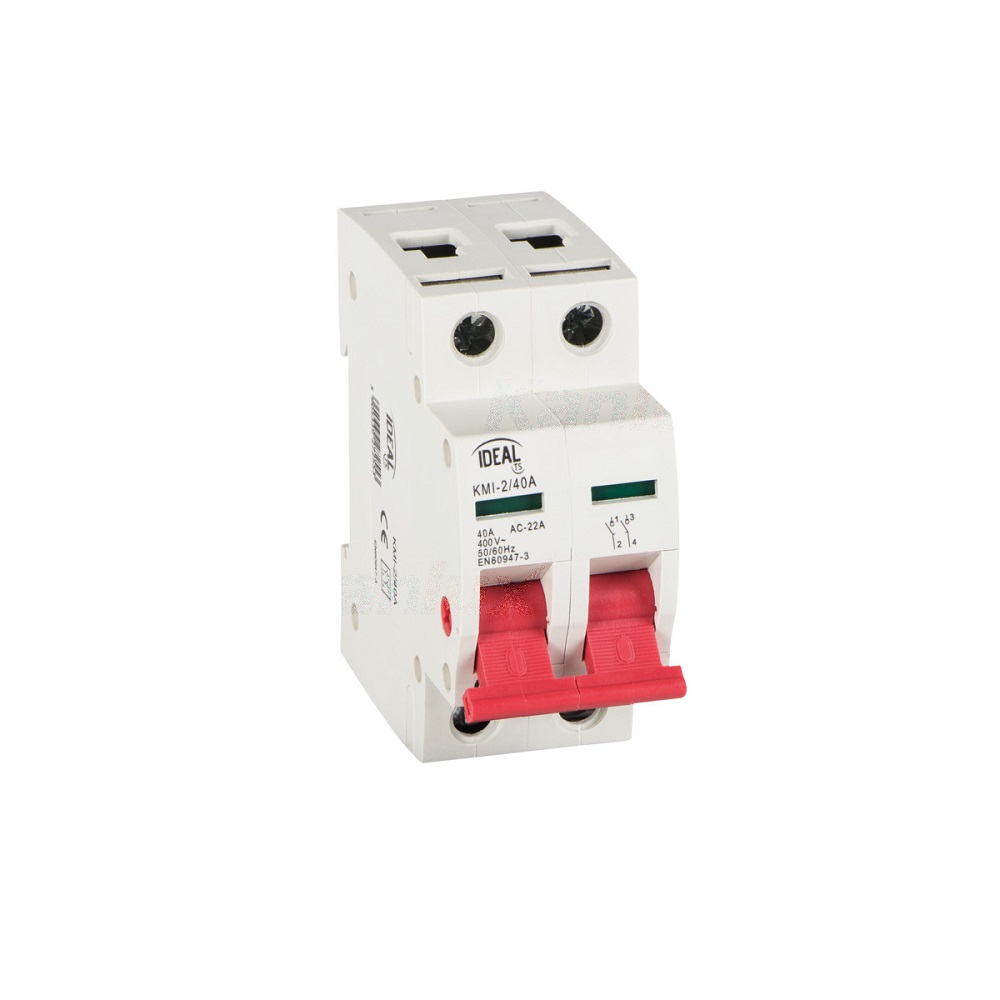

KMI-2 40A 2P 400V Kanlux disconnect switch
KA1162
KMI-2 40A 2P 400V Kanlux isolator
The switch-disconnector is used to disconnect circuits carrying rated current.
Basic information
- EAN13: 5905339272553
- Supplier code: 27255
- Place of use: indoors
Weight and dimensions
- Height [mm]: 82
- Width [mm]: 35
- Length [mm]: 76
- Weight: 162g
Technical data
-
Usage category: AC-22A
-
Nominal frequency [Hz]: 50/60
-
Nominal voltage [V]: 230/400 AC
- Modules: 2
- Rated current [A]: 40
- IP20 rating
- Cable cross-sections used [mm]: 1÷50
- Operating temperature [°C]: -25÷45
- Standards: PN-EN 60947-3
Brand
Kanlux
Current
40A
IP protection degree
IP20
Nominal tension
480V
Number of poles
2
Supplier code
27255
Typology
Disconnector
EAN
5905339272553
