PIR MERGE JQ Kanlux motion sensor
KA1110
PIR MERGE JQ Kanlux motion sensor
Kanlux MERGE JQ Is the motion sensor with a maximum motion detection range of 5 meters.
Its horizontal operating angle is 360 degrees.
It is possible to adjust both the lighting time and the external lighting level at which the sensor works.
Background information
- EAN13: 5905339076908
- Vendor code: 7960
- Color: white
- Material: plastic material
- Place of use: inside

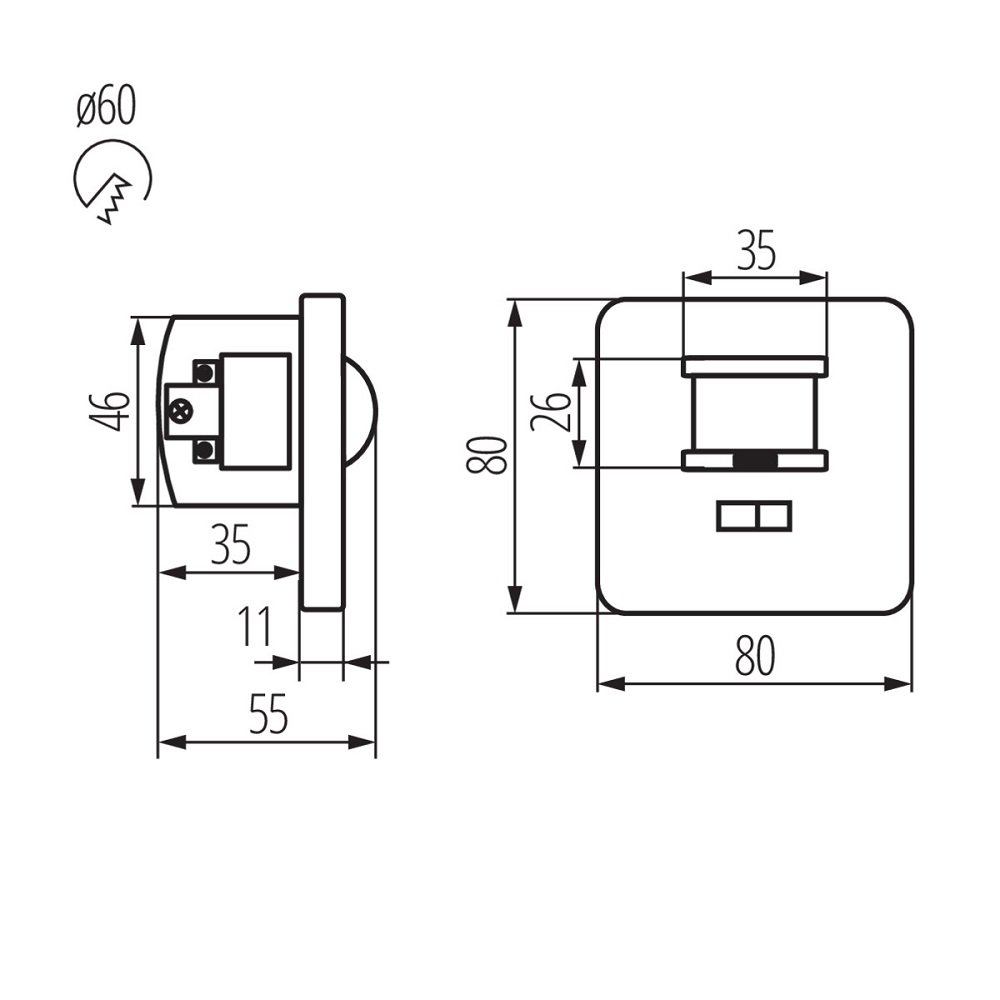

Weight and dimensions
- Height [mm]: 83
- Width [mm]: 55
- Length [mm]: 83
- Weight: 108g
Technical data
- Voltage nominal [V]: 220-240 AC
- Nominal frequency [Hz]: 50/60
- Color: white
- Maximum power [VA]: 1200
- IP degree 20
- Mounting location: for flush mounting in the wall
- Degree of protection against electric shock: II
- Possibility of mounting on normally flammable surfaces: yes

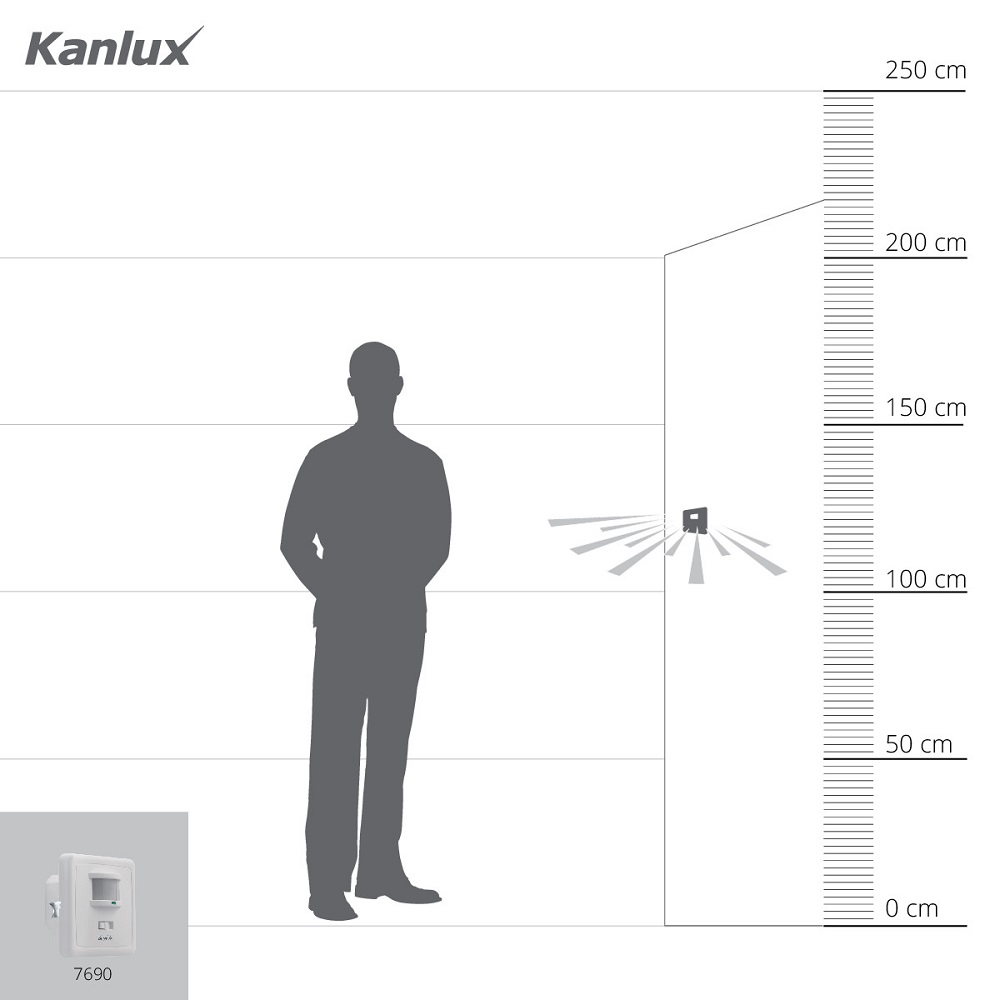

- Sensor range [m]: max 9
- Range of action of the sensor [ø]: H150 / V60
- Minimum run time [s]: 10
- Maximum running time [min]: 7
- Sensor operating time [second-minute]: 10-7
- Sensor type: PIR
- Setting the intensity of illumination with which the sensor detects motion [lx]: 3-2000
- Micro-interval between relay contacts
- Operating temperature [°C]: 5÷25
- Type of connection: terminal block
- Sections of cables used [mm]: 1÷2,5
Brand
Kanlux
Color
White
IP protection degree
IP20
Mounting
Wall
Nominal tension
220-240V
Packaging
Integral cardboard packaging
Power
1200VA
Supplier code
7960
Time lapse
10s-7m
Typology
PIR motion sensor
EAN
5905339076908
