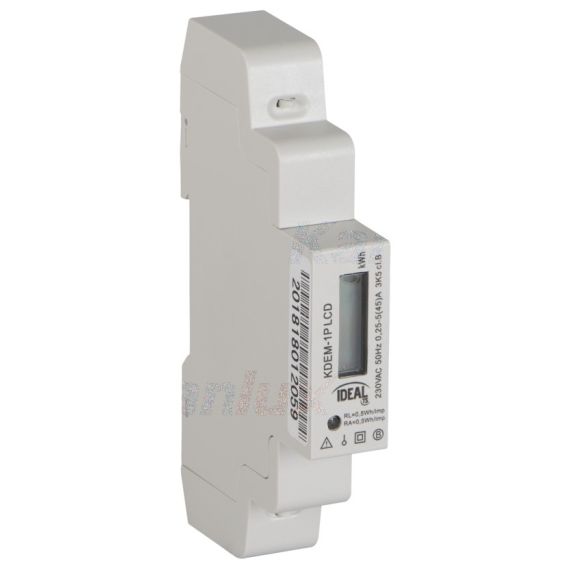

Energy meter 1P In 45A KDEM Kanlux
KDEM-1P LCD is a device used to monitor the electricity consumption of a single-phase network, in commercial and industrial applications.
Measures and displays active energy consumption (kWh).
The instrument uses the 5A (45A) direct measurement method.
KDEM-1P LCD is a meter compliant with the MID directive (accuracy class B).
With the meter equipped with an additional pulse output, it is possible to measure the energy consumption remotely.
The meter is suitable for mounting on DIN rails (TH35).
The meter is factory sealed, and the terminal cover for the power cables can also be sealed.
Basic information
- EAN13: 5905339193438
- Vendor code: 19343
- Color: white
- Place of use: inside
Weight and dimensions
- Height [mm]: 113
- Width [mm]: 17.5
- Length [mm]: 17.5
- Weight: 74g
Technical data
- Rated voltage [V]: 230 AC
- Nominal frequency [Hz]: 50
- Color: white
-
Measurement specification class: B
-
Tolerance of the supply voltage: +/- 10%
-
Current maximum [A]: 45
-
Minimum current [A]: 0.02
-
Base current [A]: 0.25-5
-
Constant of a counter [Wh / imp]: 0.5
-
Counter measurement: 99999.99
-
Pulse output: S0+S0- | <27V DC | <27mA
- Measurement lamp - pulse value [imp / KWh]: 2000
-
Modules: 1
-
IP degree: IP 20
-
Type of connection: terminal strip
-
Sections of the cables used [mm]: 2,5-6
-
Operating temperature [°C]: -10÷35
-
Own socket [VA]: max ≤4
-
Mounting location: for binary TH35
-
Standards: PN-EN 60715
