Horizontal Limit Switch with Roller Lever 250V 10A CF7141 Fato
EL2611
Horizontal Limit Switch with Roller Lever 250V 10A CF7141 Fato
Plastic micro limit switch, stainless steel lever with plastic roller, 1NO+NC, 10A 250V, IP40, rubber cable gland.
Outer shell covered with intensive plastic, waterproof and oil resistant.

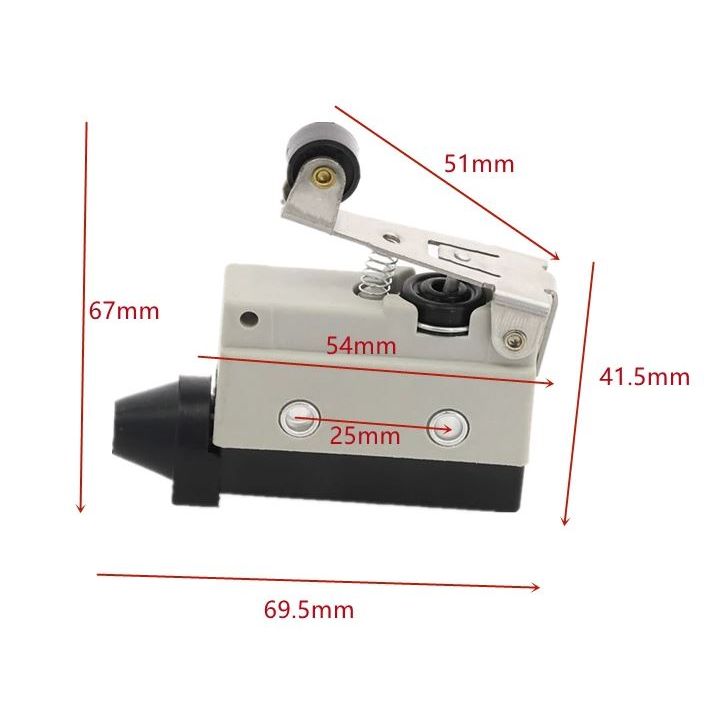

Dimensions
|
Nominal voltage |
Noninductive Load (A) | Inductive Load (A) | ||||||
| Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||
| NC | NO | NC | NO | NC | NO | NO | NC | |
| 125VAC 250VAC 480VA |
10 10 3 |
3 2.5 1.5 |
1.5 1.25 0.75 |
10 10 2.5 |
5 3 1.5 |
2.5 1.5 0.75 |
||
| 8VDC 14VDC 30VDC 125VDC 250VDC |
10 10 8 0.5 0.25 |
3 3 3 0.4 0.2 |
1.5 1.5 1.5 0.4 0.2 |
6 6 6 0.05 0.03 |
6 6 5 0.05 0.03 |
5 5 2.5 0.05 0.03 |
||
Technical features
| Operating speed | 0.5mm-50cm/sec |
| Operating frequency | Mechanical: 120 operations/minute Electric: 30 operations/minute |
| Contact resistance | 15mΩ max. (initial value) |
| insulation resistance | >100mΩ (at 500VDC) |
| Dielectric strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
| 1500 V AC, 50/60 Hz for 1 minute between live and non-live metal parts | |
| 1500VAC, 50/60Hz for 1 minute between each terminal and earth | |
| Vibration | Action: 10 to 55Hz, 1.5mm pairs swing |
| Shock | Mechanical Durability: 1,000m/Sec2(about 100g's) Malfunction: 300m/Sec2(about 30g's) |
| Environmental temperature | -10~+80 (With no icing) |
| Humidity | <95%RH |
| Life | Mechanical: 10,000,000 Electric: 500,000 |
| Weight | about 60g |
Brand
FATO
Packaging
Loose
Supplier code
CF7141
