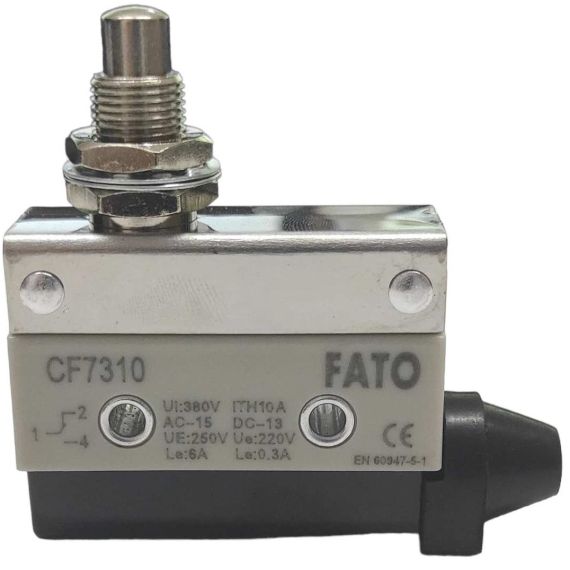

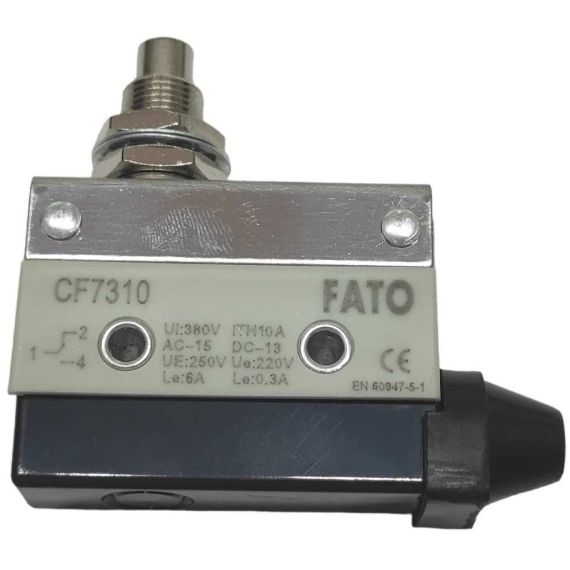

Horizontal limit switch with push button 250V 10A CF7310 Fato
EL2629
Horizontal limit switch with push button 250V 10A CF7310 Fato
The limit switch is a small, very sensitive switch that requires minimal compression to activate. They are very common in household appliances and switch panels with small buttons. ... Because they are reliable and sensitive, micro switches are often used as a safety device.
Technical features
- Contact configuration: 1NO1NC
- Actuator Action: Momentary (Auto Reset)
- Rated Voltage: 250V
- Rated current: 10A
- Terminal Type: Screw (3 Terminals)
- Button color: silver, black
- Button material: metal, plastic
- Contact resistance: <= 30mohm
- Insulation Resistance: >=100 Mohm (500V DC)
- Dielectric strength: 1500VAC 1 minute
- Operating temperature: -15 degrees Celsius - +80 degrees Celsius
- Used ambient humidity: < 95 percent RH
- Electrical life: >=1.0000 cycles
- Mechanical life: >=100,000 cycles
Brand
FATO
Packaging
Loose
Supplier code
CF7310
