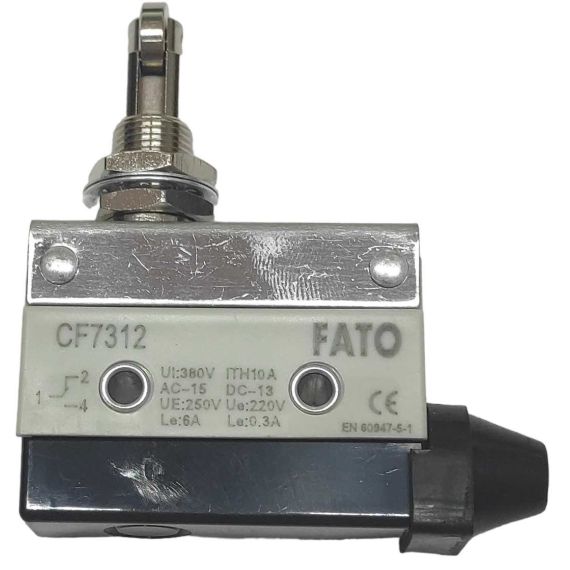

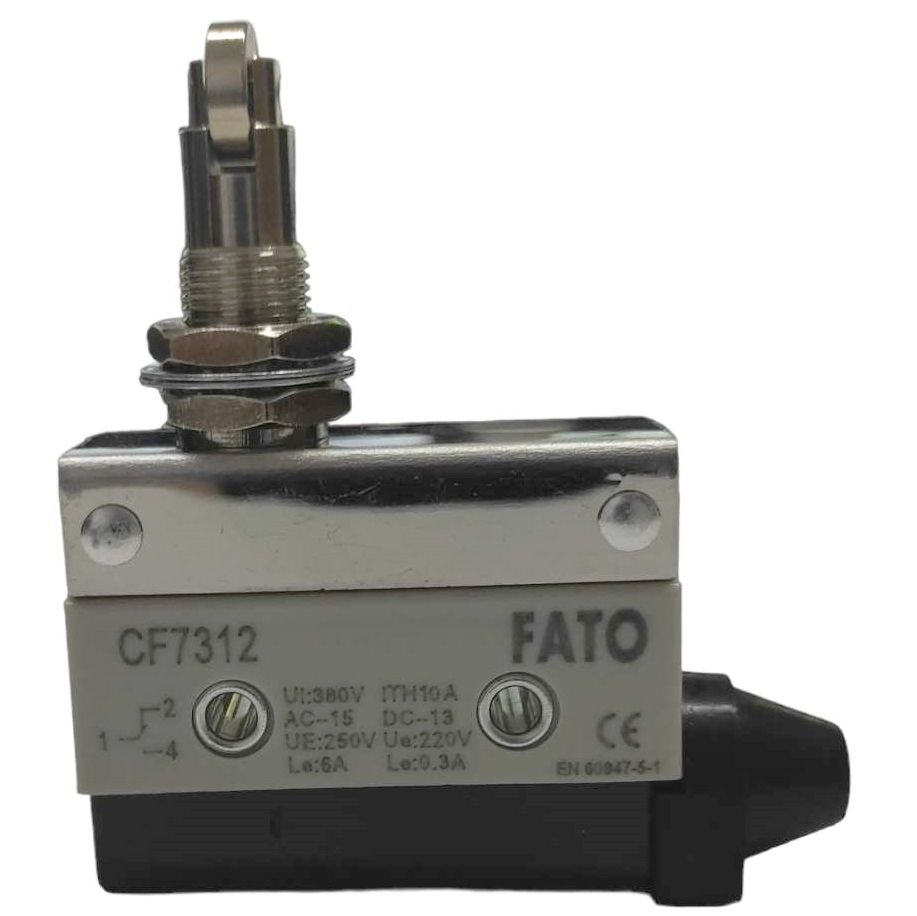

Fato 90° Roller Horizontal Limit Switch 250V 10A CF7312
EL2639
Fato 90° Roller Horizontal Limit Switch 250V 10A CF7312
Plastic micro limit switch, stainless steel lever with steel roller, 1NO+NC, 10A 250V, IP40, rubber cable gland.
Outer shell covered with intensive plastic, waterproof and oil resistant.
Dimensions
|
Voltage |
Noninductive Load (A) | Inductive Load (A) | ||||||
| Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||
| NC | NO | NC | NO | NC | NO | NO | NC | |
| 125VAC 250VAC 480VA |
10 10 3 |
3 2.5 1.5 |
1.5 1.25 0.75 |
10 10 2.5 |
5 3 1.5 |
2.5 1.5 0.75 |
||
| 8VDC 14VDC 30VDC 125VDC 250VDC |
10 10 8 0.5 0.25 |
3 3 3 0.4 0.2 |
1.5 1.5 1.5 0.4 0.2 |
6 6 6 0.05 0.03 |
6 6 5 0.05 0.03 |
5 5 2.5 0.05 0.03 |
||
Technical features
| Operating speed | 0.5mm-50cm/sec |
| Operating frequency | Mechanical: 120 operations/minute Electric: 30 operations/minute |
| Contact resistance | 15mΩ max. (initial value) |
| insulation resistance | >100mΩ (a 500VDC) |
| Dielectric strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
| 1500 V AC, 50/60 Hz for 1 minute between live and non-live metal parts | |
| 1500VAC, 50/60Hz for 1 minute between each terminal and earth | |
| Vibration | Action:10 to 55Hz,1.5mm pairs swing |
| Shock | Mechanical Durability: 1,000m/Sec2(about 100g's) Malfunction: 300m/Sec2(about 30g's) |
| Environmental temperature | -10~+80 (With no icing) |
| Humidity | < 95% RH |
| Life | Mechanical: 10,000,000 Electric: 500,000 |
| Weight | about 60g |
Brand
FATO
Packaging
Loose
Supplier code
CF7312
